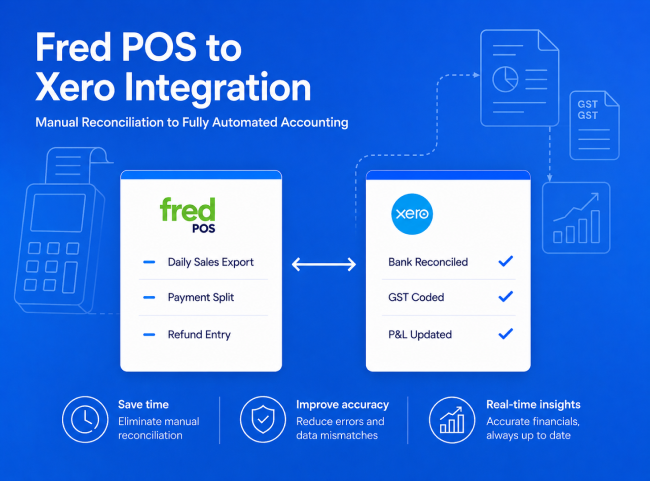

The Fred POS to Xero Integration Manual Reconciliation to Fully Automated Accounting

A fast-growing pharmacy retail business was manually transferring daily sales data from Fred Office (POS system) into Xero for accounting and reporting.

This manual process consumed 2–3 hours daily, introduced data inconsistencies, and created month-end reconciliation stress.

Results and Impact

Eliminated Daily Manual Financial Processing

• Reduced manual contact, invoice, and bi-directional payment entries by over 90%
• Cut daily reconciliation time from 2–3 hours to a fully automated Removed repetitive accounting tasks from routine operations
• The finance team no longer manually mirrors transactions between Fred Office and Xero.

Significant Reduction in Data Errors & Duplications

• Duplicate customer creation reduced by 85%
• Invoice and payment mismatches became rare exceptions due to synchronized bi-directional validation.
• Maintained structured Fred ↔ Xero entity and payment ID mapping in a dedicated Sync Database.
• Prevented duplicate payment creation through direction-based conflict control logic.

Financial records are now aligned across systems with controlled data consistency.

Temporary API failures no longer interrupt accounting workflows.

Improved Accounting Productivity & Operational Efficiency

• Improved finance team productivity by approximately 60%
• Accelerated month-end reconciliation cycles
• Enabled staff to focus on reporting, GST validation, financial analysis, and exception management instead of manual reconciliation.
• Tracked payment origin (Fred or Xero) to maintain cross-system audit clarity.

The accounting function shifted from manual processing to financial oversight.

Full Audit Traceability & Financial Transparency

• 100% transaction-level logging across both systems (Contact → Invoice → Bi-Directional Payment)
• Stored sync timestamps, retry attempts, and mapping IDs
• Generated automated summary reports after every run

Faster Monitoring & Issue Resolution

• Automated email alerts for critical failures
• Reduced issue detection time by nearly 80%
• Enabled proactive troubleshooting before month-end reconciliation and prevented cross-system financial discrepancies.

The Client

A growing pharmacy business with retail enterprises operating across Australia relied on Fred Office for front-of-store sales, customer management, and daily retail operations across approximately 5,000+ retail stores.

For centralized accounting and financial reporting, the organization used Xero to manage invoicing, receivables, GST compliance, and financial oversight.

The Challenge

Customer statements were generated manually in PDF format, including bank details at the bottom for payments.

Incoming bank transactions were then manually reconciled using MS Access and Excel spreadsheets, requiring significant effort to match:

• Bank feeds
• Customer records
• Outstanding statements

Final financial entries were manually posted back into Fred Office.

Disconnected POS and Accounting Systems

Fred and Xero operated independently. Financial data had to be manually transferred daily.

• Contacts
• Invoices
• Payments – Fred POS to Xero
• Payments – Xero to Fred POS

No Structured Mapping Control

Without persistent ID mapping:

• Duplicate contacts were created
• Invoice references were broken
• Payments were sometimes misapplied
• No sync history tracking existed

There was no centralized system to track sync history.

No Error Transparency

If something failed:

• There was no retry mechanism
• No automated alerting
• No consolidated log

Issues were discovered only during month-end reconciliation.

Compliance & Audit Risk

Pharmacy businesses require accurate financial tracking for:

• GST compliance
• Audit reporting
• Controlled financial documentation

Manual processes increased exposure to errors.

The Solution

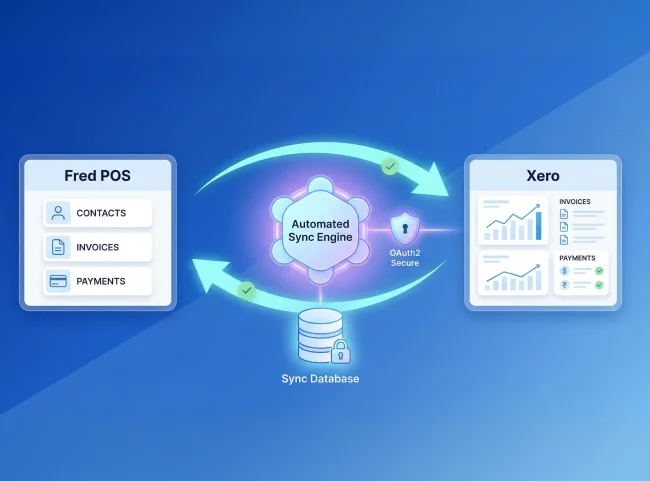

Satva Solutions designed and implemented a robust Windows Service based financial synchronization engine that connects Fred POS directly with Xero via secure OAuth2 APIs. The solution enables bi-directional payment synchronization between Fred Office and Xero, maintaining real-time financial alignment.

Automated Background Sync Engine

A .NET-based Windows Service was deployed on a secure RDP environment that:

• Runs automatically every day
• Executes structured sync logic
• Operates independently of user login
• Requires no manual trigger

This ensured consistent and reliable automation.

Structured Three-Phase Sync Workflow

The system follows a logical financial order:

1. Contact Synchronization

• Identifies new or updated customers in Fred
• Matches or creates contacts in Xero
• Stores mapping IDs in a dedicated Sync Database

2. Invoice Synchronization

• Matches invoices to mapped contacts
• Pushes new or updated invoices to Xero
• Maintains invoice-level mapping records
• Automatically retries on temporary API failure (up to 3 attempts)

3. Payment Synchronization

• Matches payments to corresponding invoices from xero
• Syncs payments from Fred to Xero
• Syncs reconciled payments from Xero back to Fred (if applicable)
• Maintains payment ID mapping across both systems
• Prevents duplicate payment creation
• Ensures accounts receivable consistency

Intelligent Logging & Monitoring System

The solution includes:

• File-based logging
• Database-level sync tracking
• Structured unmatched-item recording
• End-of-run summary generation

If failures exceed threshold:

• Automated email notification is triggered via Email notifications
• Support team receives detailed sync summary

This enables proactive monitoring rather than reactive correction.

Dedicated Sync Database

A centralized SQL database stores:

• Entity mappings (Contact, Invoice, Payment)
• Sync status flags
• Retry counts
• Error details
• Audit timestamps

Secure OAuth2 Integration

All communication with Xero is secured using:

• OAuth2 authentication
• Token-based access
• Encrypted API channels

Ensuring financial data integrity and compliance.

Conclusion

Satva Solutions transformed the client’s accounting workflow from a manual, error-prone process into a fully automated financial synchronization system.

By intelligently bridging Fred POS with Xero:

• Data entry was eliminated
• Reconciliation became automated
• Financial visibility improved
• Errors were minimized
• Audit readiness strengthened

Technology Stack

• Backend: .NET Framework (Windows Service Architecture)
• Integration: Xero OAuth2 REST APIs (Xero.NetStandard SDK)
• Database: SQL Server (Sync & Mapping Database)
• Authentication: OAuth2 Secure Token Flow
• Logging: Custom File & Database Logging Engine
• Email Service: SMTP Integration (SendGrid)
• Hosting: Secure RDP Environment
