Benefits of API Integration in ASP.NET MVC Applications

ASP.NET MVC applications often need to exchange information with accounting platforms, CRM systems, payment gateways, eCommerce platforms and other business applications.

API integration makes these connections possible without requiring users to repeatedly export, import or re-enter information.

In this guide, we explain how API integration works in an ASP.NET MVC application, its primary business benefits, common implementation scenarios and the technical practices developers should follow when consuming third-party APIs.

What Is API Integration in ASP.NET MVC?

An application programming interface, or API, defines how one software application can request information or trigger actions in another application.

In an ASP.NET MVC application, an API integration normally allows the application to send HTTP requests to an external system and process the response returned by that system.

For example, an ASP.NET MVC application may use an API to:

• Retrieve customer information from a CRM
• Send invoices to an accounting platform
• Process payments through a payment gateway
• Obtain shipping rates from a logistics provider
• Synchronize orders from an eCommerce platform
• Display product, inventory or pricing information

The MVC architecture separates an application into models, views and controllers.

For API integrations, the controller usually receives the user request, an integration or service class communicates with the external API, and the returned information is mapped to a model before being displayed in the view or stored in the database.

Microsoft describes MVC as an architecture that separates these responsibilities to make applications easier to develop, test and maintain.

For integrations involving custom authentication, complex data mapping or multiple third-party platforms, businesses may need custom API integration services designed around their application architecture.

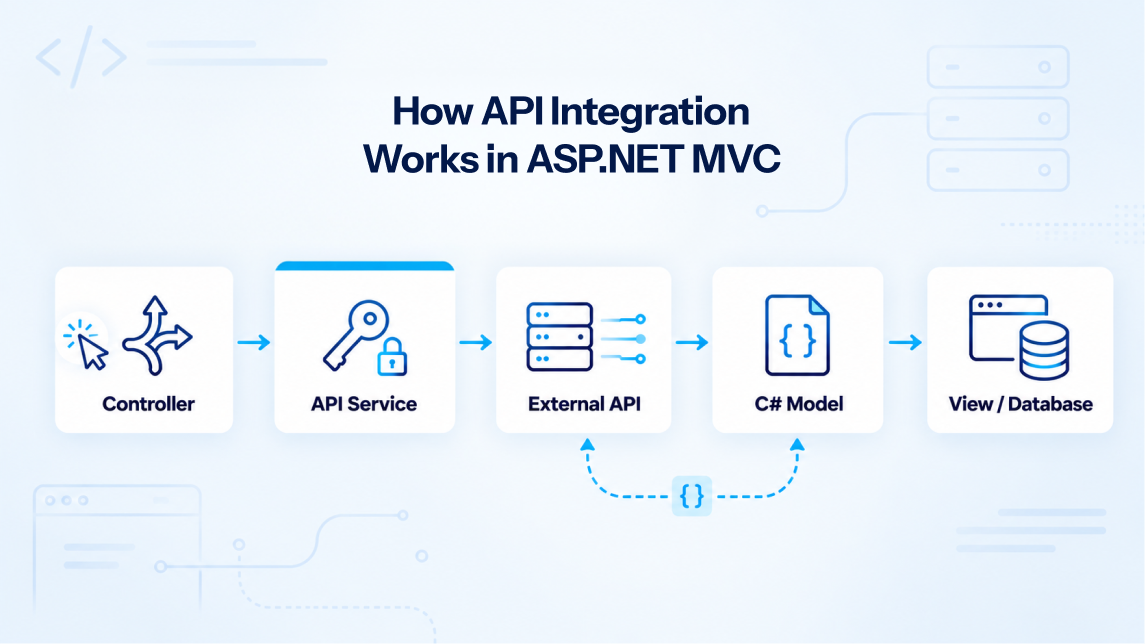

How API Integration Works in an ASP.NET MVC Application

An ASP.NET MVC API integration generally follows this flow:

1. A user performs an action in the ASP.NET MVC application.
2. The controller receives the request.
3. The controller calls an API service or integration class.
4. The service authenticates with the third-party platform.
5. The application sends an HTTP request to the API endpoint.
6. The external system processes the request and returns a response.
7. The application converts the JSON or XML response into a C# model.
8. The controller passes the processed information to a view or saves it in the application database.

For example, when a user opens an order details page, the ASP.NET MVC application may call an inventory API to retrieve the current stock level. The returned JSON response is converted into a C# object and displayed alongside the order information.

HttpClient is commonly used in .NET applications to send HTTP requests and receive API responses. Microsoft recommends managing its lifecycle carefully rather than creating and disposing of a new client for every request.

An experienced ASP.NET MVC development company can help structure controllers, API service layers, authentication and testing for both legacy and modern .NET applications.

Key Benefits of API Integration in ASP.NET MVC

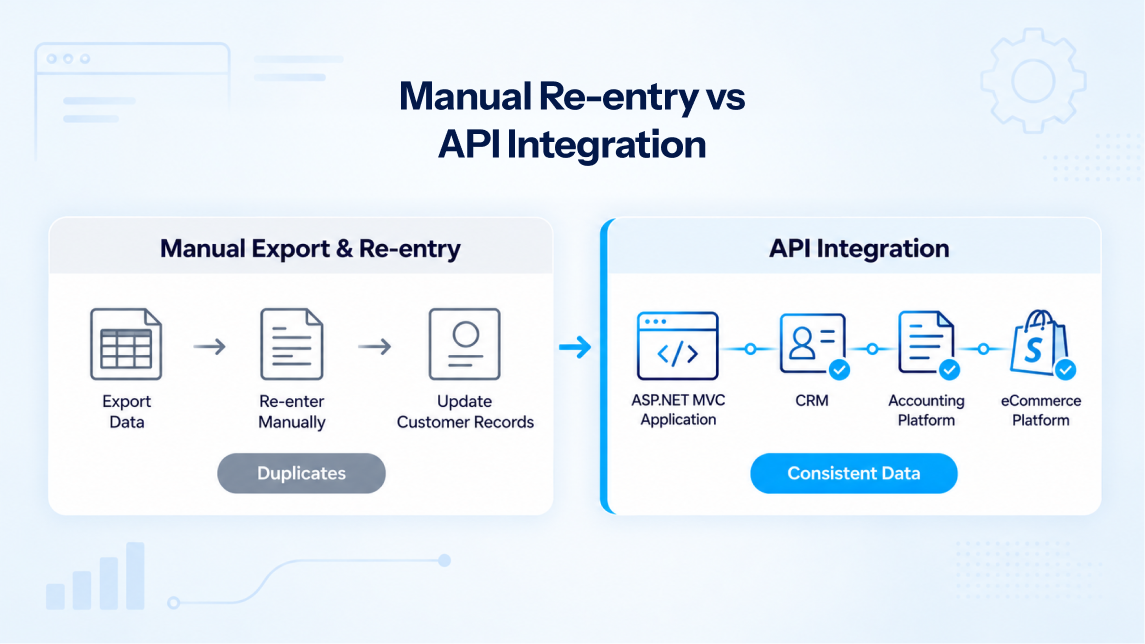

1. Reduces Manual Data Entry

API integration allows information to move directly between connected applications. Employees no longer need to repeatedly copy customer records, orders, invoices, payments or inventory information from one system to another.

Reducing manual entry can also lower the likelihood of duplicate records, incorrect values and missing information.

2. Connects Existing Business Applications

Businesses frequently use different applications for sales, accounting, customer management, payments and operations. An ASP.NET MVC application can act as a central interface that exchanges information with these systems through their APIs.

This allows businesses to continue using their preferred applications while making the required information available within one workflow.

3. Supports Faster Feature Development

Developers do not always need to build every application feature from the beginning. APIs allow ASP.NET MVC applications to use established services for payments, email delivery, identity verification, maps, shipping calculations and document generation.

Development teams can therefore focus on the application’s core business requirements rather than recreating functionality already provided by another platform.

4. Improves Data Consistency

When information is manually maintained in multiple systems, customer names, addresses, order statuses and financial values can become inconsistent.

API integration establishes rules for how information is created, updated and synchronized. This gives teams more consistent data across operational, customer-facing and financial applications.

5. Enables Near-Real-Time Information Exchange

An API can retrieve or update information when a specific event occurs. For example, an application can update inventory after an order is placed, create an accounting transaction after payment is received or display the latest shipping status.

The exact synchronization frequency depends on the API, business requirements, rate limits and integration architecture.

6. Reuses Shared Business Capabilities

Functions such as address validation, tax calculation, inventory checking and currency conversion may be required in several parts of an application.

Instead of implementing the same logic repeatedly, developers can expose or consume these capabilities through APIs. This creates reusable services that can support multiple applications and business processes.

7. Improves the User Experience

An ASP.NET MVC application can present information from multiple systems without requiring the user to switch between different platforms.

For example, a customer service representative could view CRM details, unpaid invoices, recent orders and shipping information from one application screen.

8. Supports Business Growth

API-based architecture makes it easier to connect new applications, channels or business partners as requirements change.

A business launching a new sales channel, payment provider or warehouse can add the required integration without completely rebuilding its primary ASP.NET MVC application.

A connected business systems approach helps CRM, ERP, eCommerce, inventory and accounting platforms exchange consistent operational and financial data.

To speed up time-to-market:

• APIs can significantly speed up the time to market new products and service features.
• stakeholders are encouraged to contact the API Integration services provided by our experienced Asp.Net Developers team if there is a problem in order to maintain time-to-market speed advantage.
• Businesses today use several applications and require them to be integrated so that business processes as a whole, perform seamlessly. However, application API integration services are often process themselves and take long to implement.
• An example? Imagine that you use three applications one for your accounts, one for customer relationship management, and another to send marketing emails to your customer base. Alone, all three might be fabulous, but when combined they become far more powerful.

Shared Business Functions:

• In the same way that many business applications store redundant data, they also tend to implement redundant functionality.
• It makes business sense to expose these functions as a shared business function that is implemented once and available as a service to other systems.

Common ASP.NET MVC API Integration Use Cases

ASP.NET MVC API integrations can support a broad range of business requirements. Some common scenarios include:

CRM and Accounting Integration

An application can transfer customers, invoices, payments and credit notes between a CRM and an accounting platform.

For example, when a sales opportunity is marked as completed, the integration can create or update the customer in the accounting system and prepare the required invoice information.

eCommerce and Inventory Integration

Orders from an eCommerce platform can be transferred to an inventory or order-management system. Product availability, fulfilment status and tracking details can then be returned to the website.

This reduces the need to maintain order and inventory information separately.

Payment Gateway Integration

ASP.NET MVC applications can connect with payment APIs to create payment requests, verify transaction results, process refunds and display payment statuses.

The application should verify payment results through the provider’s API or webhook rather than relying only on information returned to the browser.

Shipping and Logistics Integration

Shipping APIs can provide delivery rates, available services, shipment creation, labels and tracking information.

An ASP.NET MVC application can display these options during checkout or within an internal order-management portal.

Marketing and Communication Integration

Applications can connect customer or subscriber information with email, SMS or notification platforms.

The integration can add contacts, update subscription preferences and trigger messages based on defined business events.

Reporting and Dashboard Integration

Data from CRM, accounting, sales and operational systems can be collected through APIs and presented in an ASP.NET MVC dashboard.

This helps decision-makers review information without manually combining several exports.

Developers working with customers, invoices, payments and webhooks can refer to this QuickBooks Online API guide for authentication, endpoints and integration considerations.

When Zoho Books is the financial platform, a Zoho Books API integration can connect customer, invoice, payment and inventory workflows with an ASP.NET MVC application.

Businesses selling through online channels may require custom eCommerce integrations to connect orders, inventory, fulfilment and accounting information.

Step-by-Step Process for API Integration in ASP.NET MVC

Step 1: Define the Integration Requirement

Identify which systems need to communicate, what information must be exchanged and which application should be considered the source of truth.

For example, determine whether the CRM or accounting platform controls customer information before implementing two-way synchronization.

Step 2: Review the API Documentation

Review the available endpoints, supported request methods, authentication requirements, response structure, rate limits and error codes.

The documentation should also confirm whether the platform supports webhooks for event-based updates.

Step 3: Configure Authentication

Depending on the API, authentication may use:

• API keys
• Basic authentication
• OAuth 2.0
• Bearer tokens
• Signed requests
• Client certificates

Credentials should be stored in protected configuration rather than directly inside controllers or source code.

Step 4: Create a Dedicated API Service

Keep external API communication inside a dedicated service or integration layer.

The controller should coordinate the request, while the service should handle endpoint calls, authentication headers, response parsing and API-specific errors.

Step 5: Map the API Response

Third-party field names and formats may not match the application’s internal models.

Create dedicated request and response classes and map external data into the format required by the ASP.NET MVC application.

Step 6: Handle Errors and Rate Limits

The integration should account for:

• Invalid credentials
• Request timeouts
• Unavailable API endpoints
• Invalid responses
• Rate-limit errors
• Duplicate records
• Partial synchronization failures

Retry logic should be used carefully and only for failures that may succeed during a later attempt.

Step 7: Test the Integration

Test successful requests as well as invalid data, expired credentials, empty responses, duplicate requests and temporary API failures.

Use the provider’s sandbox or test environment when one is available.

Step 8: Monitor the Integration

Log synchronization status, error messages, external record IDs, and request identifiers. Avoid recording access tokens, passwords or sensitive customer data in application logs.

For accounting integrations, compare QuickBooks, Xero and Zoho Books API rate limits before defining synchronization frequency, batch size and retry rules.

Monitoring makes it easier to identify failed records and investigate API changes.

There is a whole new market for such integrations and integrator companies who provide services of eCommerce API Integration  At Satva Solutions We provide API integration services with top eCommerce providers like Amazon, eBay, Magento, Shopify, BigCommerce, 3Dcart, WooCommerce, etc.

Example: Calling a REST API from an ASP.NET MVC Controller

The following simplified example uses HttpClient to retrieve product information from an external API:

using Newtonsoft.Json;
using System;
using System.Net.Http;
using System.Net.Http.Headers;
using System.Threading.Tasks;
using System.Web.Mvc;



public class ProductsController : Controller
{
private static readonly HttpClient ApiClient = new HttpClient
{
BaseAddress = new Uri("https://api.example.com/")
};



public async Task<ActionResult> Details(int id)
{
    ApiClient.DefaultRequestHeaders.Accept.Clear();
    ApiClient.DefaultRequestHeaders.Accept.Add(
        new MediaTypeWithQualityHeaderValue("application/json"));

    HttpResponseMessage response =
        await ApiClient.GetAsync($"products/{id}");

    if (!response.IsSuccessStatusCode)
    {
        ViewBag.ErrorMessage =
            "Product information is temporarily unavailable.";

        return View("ApiError");
    }

    string json = await response.Content.ReadAsStringAsync();

    ProductViewModel product =
        JsonConvert.DeserializeObject<ProductViewModel>(json);

    return View(product);
}


}

This example is intentionally simple. In a production application, API calls should normally be placed in a separate service rather than directly inside the controller.

Developers should also add authentication, timeout management, structured error handling, logging and input validation based on the third-party API’s requirements.

Microsoft recommends reusing or properly managing HttpClient instances to avoid connection-management problems.

ASP.NET MVC API Integration Security Best Practices

API integrations exchange information across application boundaries, so security must be considered throughout the implementation.

Use HTTPS

All API communication containing authentication credentials, customer information or business data should use HTTPS.

Protect API Credentials

Do not place API keys, client secrets or tokens directly in controllers, JavaScript files or public repositories. Store them in protected application configuration or an appropriate secrets-management system.

Validate Third-Party Responses

Do not automatically trust information received from an external API. Validate expected formats, field values, file types and identifiers before processing or storing the response.

OWASP identifies unsafe consumption of third-party APIs as an important security risk because applications may trust external responses without sufficient validation.

Apply Proper Authorization

Confirm that users are permitted to view or modify the information requested through the integration. Authentication proves who the user is, while authorization determines which records and operations they can access.

Avoid Logging Sensitive Information

Logs should help developers diagnose failures without storing passwords, access tokens, payment information or confidential customer data.

Plan for Token Expiration

OAuth access tokens may expire or be revoked. The integration should support token refresh, reauthorization and clear handling of authentication failures.

ASP.NET MVC vs ASP.NET Core MVC for API Integration

Traditional ASP.NET MVC applications generally run on the .NET Framework and use the System.Web.Mvc architecture. Many existing business applications continue to use this framework.

ASP.NET Core MVC is the newer cross-platform framework for building modern .NET web applications and APIs. It includes built-in dependency injection, flexible configuration, logging and a modular request pipeline.

Microsoft’s current guidance directs new MVC development toward ASP.NET Core while continuing to provide documentation for established ASP.NET MVC applications.

The core API integration principles remain similar in both frameworks:

• Keep API communication outside the presentation layer
• Use strongly typed request and response models
• Protect authentication credentials
• Handle failed and delayed requests
• Validate external data
• Monitor synchronization activity

FAQs

What is API integration in ASP.NET MVC?

API integration in ASP.NET MVC connects a web application with external platforms such as ERP, CRM, accounting, payment, eCommerce, or shipping systems. The application sends requests through an API and processes the returned data inside controllers, services, and models.

What are the benefits of API integration in ASP.NET MVC?

API integration reduces manual data entry, improves data accuracy, supports faster information exchange, and connects multiple business systems. It also helps developers add features without building every function from scratch.

How does an ASP.NET MVC application connect to a REST API?

An ASP.NET MVC application commonly uses HttpClient to send GET, POST, PUT, or DELETE requests. The API response, usually in JSON format, is converted into a C# model and then displayed, processed, or stored.

Which business systems can be integrated with ASP.NET MVC?

ASP.NET MVC applications can integrate with QuickBooks, Zoho Books, Salesforce, HubSpot, Shopify, payment gateways, ERP systems, shipping platforms, and custom databases. Integration availability depends on the API provided by each platform.

Is API integration secure in ASP.NET MVC?

API integration can be secure when developers use HTTPS, OAuth 2.0, protected API credentials, input validation, authorization, and secure logging. Tokens and API keys should never be stored directly in controllers or public repositories.

What is the difference between ASP.NET MVC and ASP.NET Core MVC API integration?

Both frameworks support REST API integration, authentication, data mapping, and error handling. ASP.NET Core MVC offers built-in dependency injection, improved configuration, cross-platform support, and stronger tooling for modern applications.

How long does an ASP.NET MVC API integration take?

The timeline depends on API complexity, authentication method, data mapping, business rules, testing requirements, and synchronization direction. A basic integration may take days, while multi-system or two-way integrations can require several weeks.

When should a business choose custom API integration?

Custom API integration is suitable when standard connectors do not support required workflows, data fields, validation rules, or system combinations. It gives businesses greater control over synchronization logic, error handling, security, and reporting.
